Ash ditch combined panel

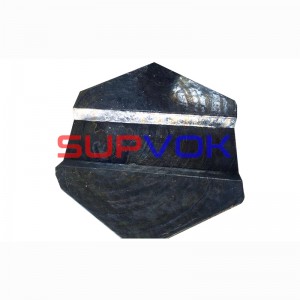

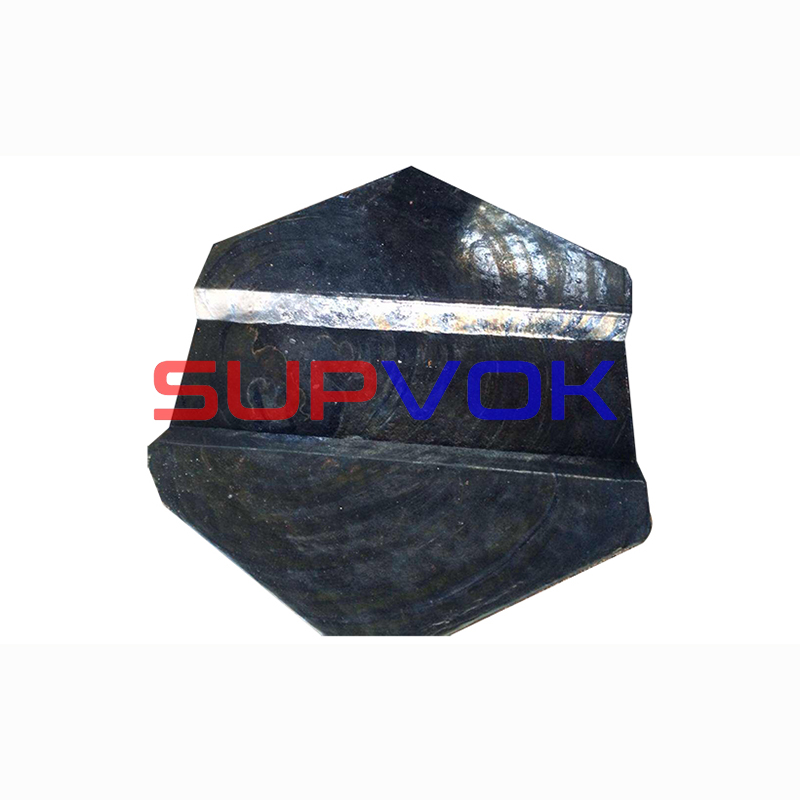

Wear-resistant cast stone plate

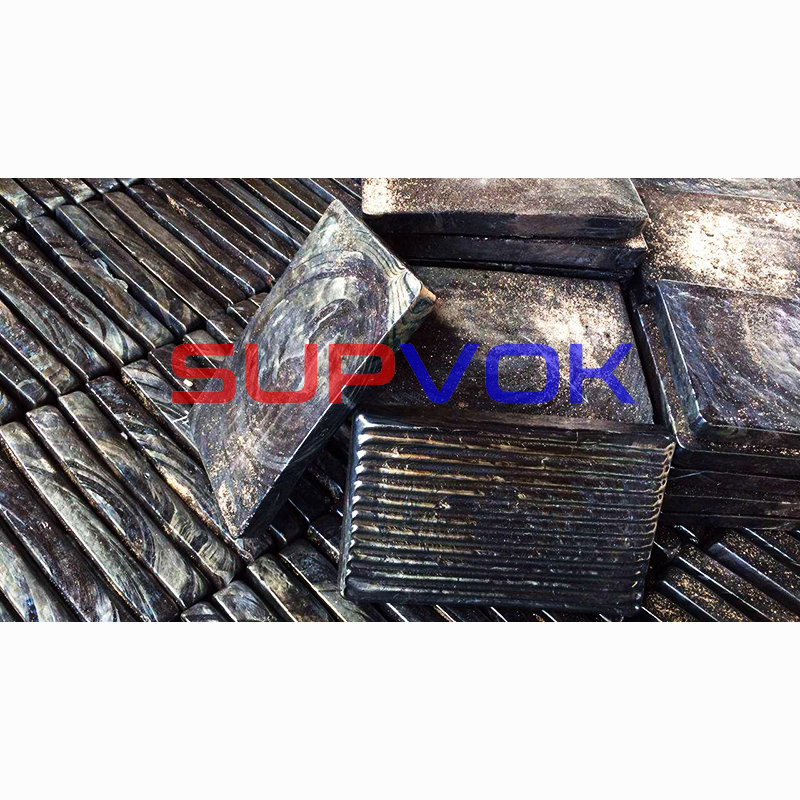

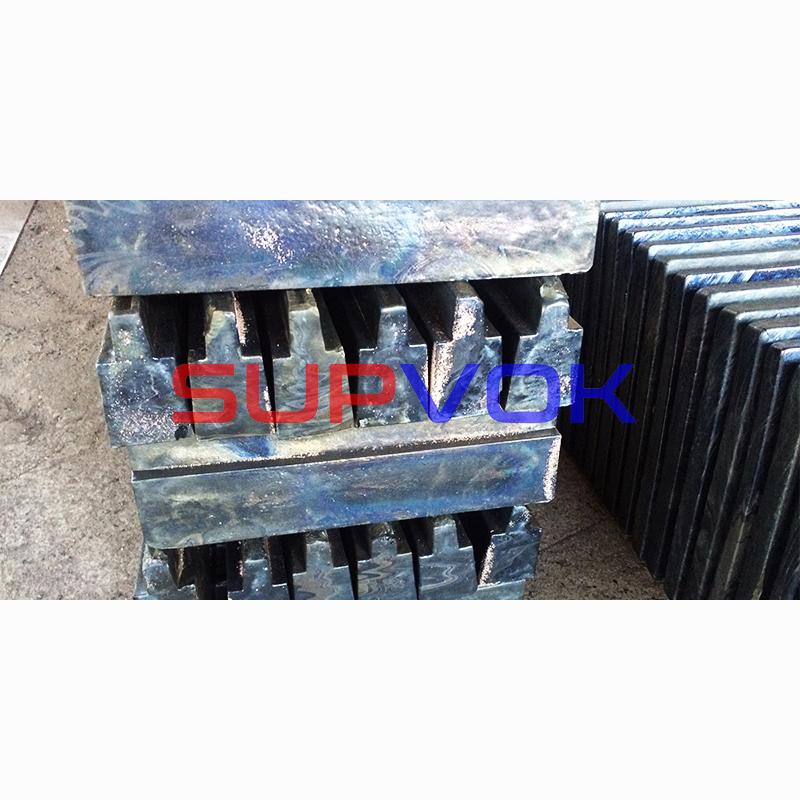

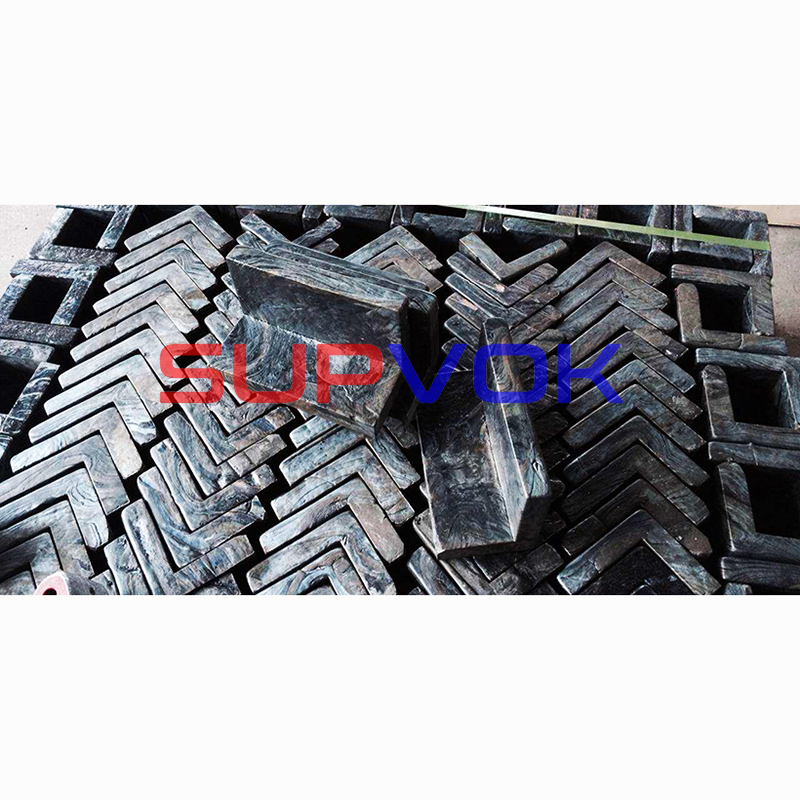

Wear-resistant cast stone plate is mainly used to line the coal bunker of thermal power plant, cyclone dust remover and cyclone of various specifications, lay the ground of various chemical plants, and lay the ground of automobile brake test field.
Wear-resistant cast stone plate can be used not only for the production of wear-resistant cast stone plate for coal bunker and customized cast stone plate, but also for the lining of pickling tank or the storage room for storing corrosive articles.
KSINO can provide various shapes, sizes and thicknesses of stone plates according to user requirements.
Basalt cast stone pipe
Basalt cast stone pipe has excellent wear-resistant performance and corrosion-resistant performance. It can be used as the lining of pipeline system for pneumatic or hydraulic transportation of corrosive materials and slurry in electric power, chemical industry, metallurgy, mining, coal and other departments.
KSINO can produce cast stone pipe with the nominal diameter from φ 40mm to φ 800mm.
Main specification（mm
|
Product No. |
Nominal Diameter |
Thickness |
Length |
Product No. |
Nominal Diameter |
Thickness |
Length |
|
ZG100 |
100 |
17.5
20
25 |
500~1000 |
ZG400 |
400 |
20、25 |
500~1000 |
|
ZG125 |
125 |
ZG450 |
450 |
||||
|
ZG150 |
150 |
ZG500 |
500 |
25 |
|||
|
ZG175 |
175 |
ZG550 |
550 |
||||
|
ZG200 |
200 |
ZG600 |
600 |
30 |
500~800 |
||
|
ZG225 |
225 |
ZG650 |
650 |
||||
|
ZG250 |
250 |
ZG700 |
700 |
||||
|
ZG275 |
275 |
ZG750 |
750 |
||||
|
ZG300 |
300 |
ZG800 |
800 |
||||
|
ZG350 |
350 |

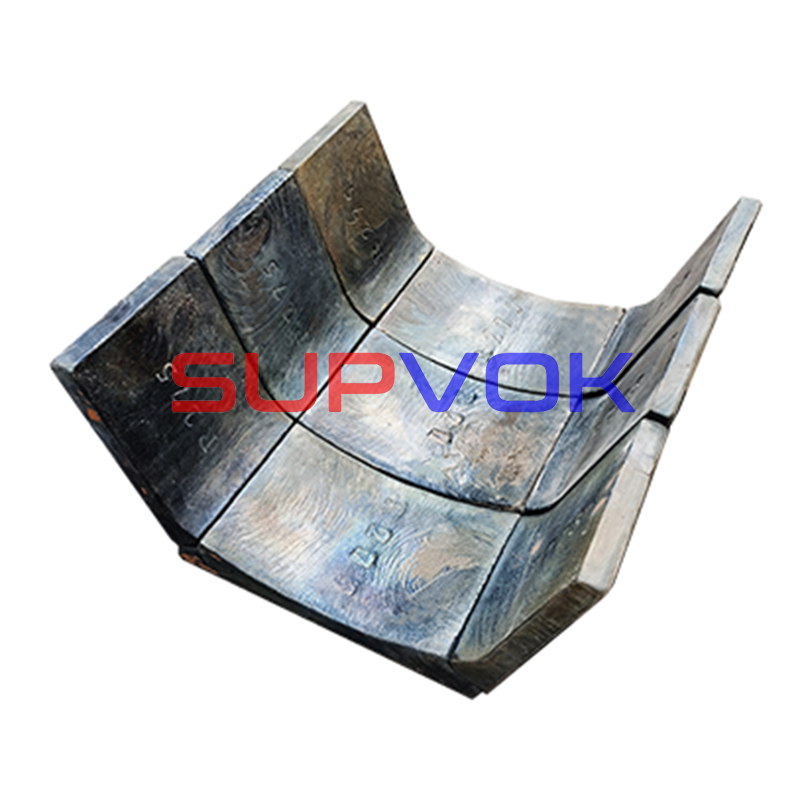

Ash ditch composite panel
Ash ditch composite panel belongs to the sliding type, which is widely used in ash removal of power plant boilers.
KSINO can provide products with various specifications.
Ash ditch composite panel mainly include straight ditch and curved ditch panels, junction panel, double ditch confluence panel, triple intersection panel, guide ditch panel, etc.
Specification
|
Size |
Series |
||||||||
|
Ro125 |
Ro150 |
Ro175 |
Ro200 |
Ro225 |
Ro250 |
Ro275 |
Ro300 |
Ro350 |
|
|
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
|
|
α |
152°30′ |
149° |
140°51′ |
157°23′ |
153°44′ |
148°22′ |
143°08′ |
137°56′ |
134°46′ |
|
R₁ |
125 |
150 |
175 |
259 |
325 |
400 |
450 |
480 |
600 |
|
R₂ |
125 |
150 |
175 |
113 |
101 |
85 |
93 |
106 |
111 |
|
B |
370 |
415 |
470 |
490 |
570 |
620 |
670 |
740 |
840 |
|
B₁ |
260 |
290 |
310 |
400 |
430 |
450 |
470 |
490 |
540 |
|
B₂ |
231.3 |
233.5 |
238.5 |
229.5 |
308 |
312 |
316 |
348 |
390 |
|
H |
260 |
260 |
260 |
260 |
335 |
335 |
335 |
360 |
395 |
|
H₀ |
160 |
185 |
210 |
235 |
260 |
285 |
310 |
335 |
385 |
|
H₁ |
160 |
185 |
210 |
294 |
360 |
435 |
485 |
515 |
635 |
|
H₂ |
160 |
185 |
210 |
169.5 |
162 |
150 |
158 |
170 |
177 |
|
C |
0 |
0 |
0 |
152 |
210 |
268 |
288 |
289 |
342 |
|
E |
158 |
180 |
210 |
270 |
305 |
268 |
362 |
374 |
420 |
|
F |
155.5 |
180 |
205 |
148 |
136 |
120 |
128 |
141 |
146 |
|
S |
63 |
65 |
70 |
73 |
73 |
64 |
63 |
67 |
70 |
|
kg/m |
77 |
84.3 |
88.3 |
108.3 |
126.8 |
136.0 |
138.8 |
146.8 |
160.0 |
