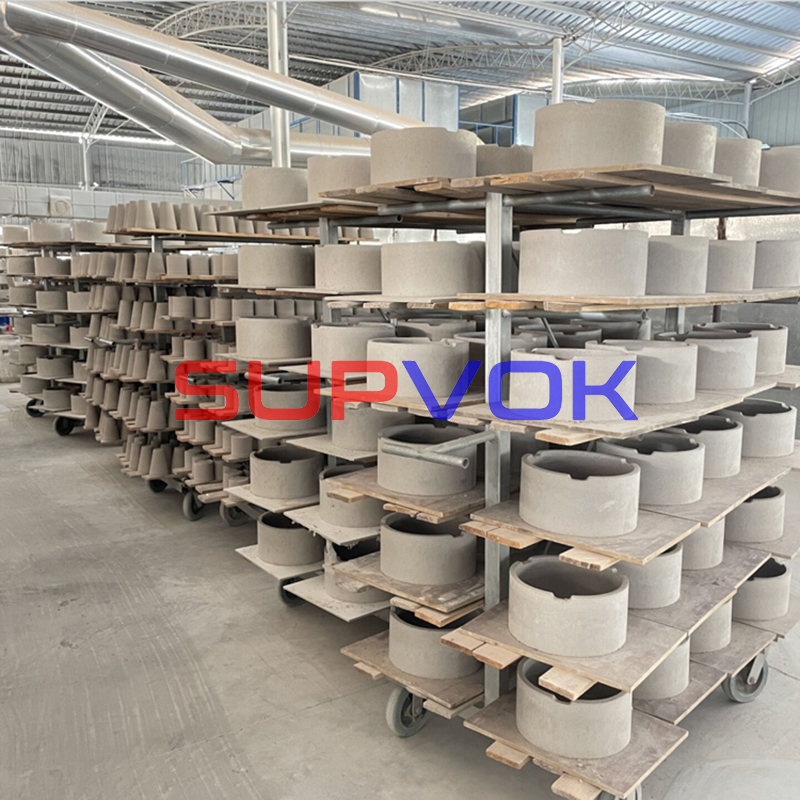

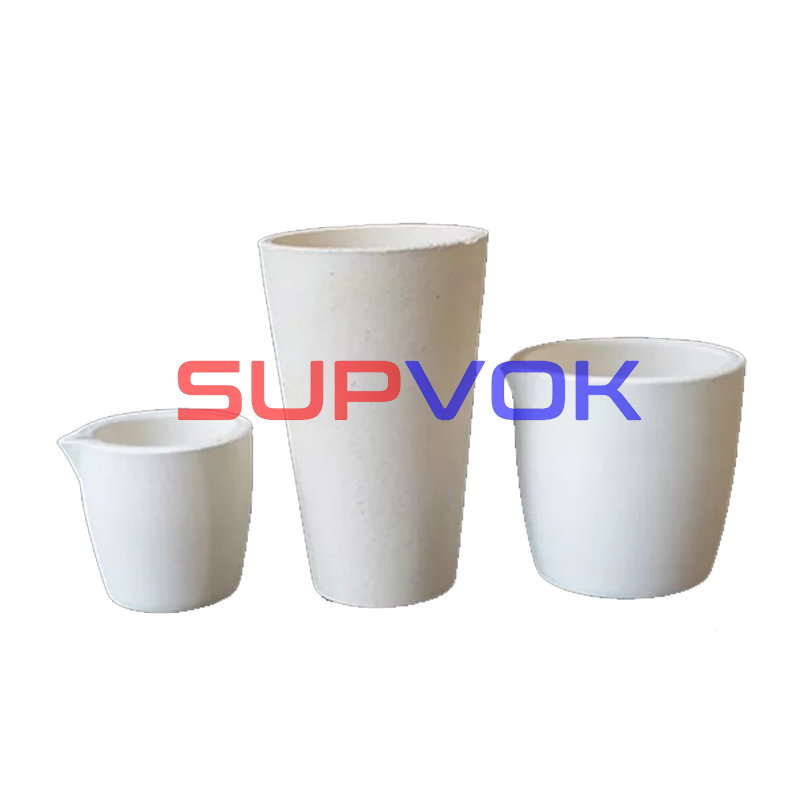

Glass Industry – Quartz Ceramic Barrel, fire assay clay crucible, Diverter, Adapter Plate, saggers
Large sized fused silica cylinder
Product description:
Ceramic cylinder products refer to cylindrical quartz ceramic products with flange at one end. Its sizes are within the range of Φ 800-1500 × 1600-3000mm. The products are made from fused silica ceramic material. They are non-magnetic and non-conductive. Under high vacuum conditions, the material does not leak. The long-term use temperature is not lower than 600 ℃. Shandong Yinggui Industrial Ceramics Co., Ltd is the only Chinese enterprise to develop and produce the large sized fused silica ceramic cylinders.
Steel casting nozzle
Nozzle is one of the important refractory applications in steel industry
Characteristics of fused silica nozzle
►Excellent thermal shock resistance; it can be used directly without baking.
►Low thermal conductivity, low thermal expansion coefficient and excellent thermal stability;
►Acid slag flushing resistance and chemical corrosion resistance; it is suitable for pouring general steel with low manganese content.
Quartz Ceramic cover bricks
Depending on mature technique, KSINO can produce a whole cover plate with a length of 3000mm and a width of 600mm. It will also decrease the joints and improve the sealing performance.
Advantages
The product has excellent thermal shock stability. Under the normal working temperature of the flow channel, this product can enable the staff to replace the cover plate in the least time, which is conducive to reducing the downtime and improving the production efficiency.
AdvantagesFused silica ceramic hollow roller
Fused silica ceramic hollow roller can be used as an annealing roller or a furnace bottom roller. KSINO developed an advanced production technique for fused silica ceramic rollers, which has improved the production efficiency, product yield and product quality.
►By adopting coagulation injection process, the product ensure symmetrical structure and quality improvement.
►The material has good thermal stability. It can be not deformed at high temperature. The maximum using temperature can be 1100℃.
►The material can be replaced in hot state.
►The material can be highly machined with excellent accuracy.
►The material has stable chemical properties. It is pure enough which will not pollute the transmitted products.
►The material has excellent wear resistance and long service life.
Main applications
- Material support and transportation in non oriented silicon steel production line and galvanized wire in annealing furnace
- Float glass production transition roll table and annealing roll in float glass production line.
- Roller table in other heat treatment furnaces, sintering furnaces and sedimentation furnaces
|
Standard outer diameter (mm) |
Standard length (mm) |
|
120 |
2050 |
|
125 |
1750 |
|
150 |
1800 |
|
1950 |
|
|
2400 |
|
|
180 |
1800、2050 |

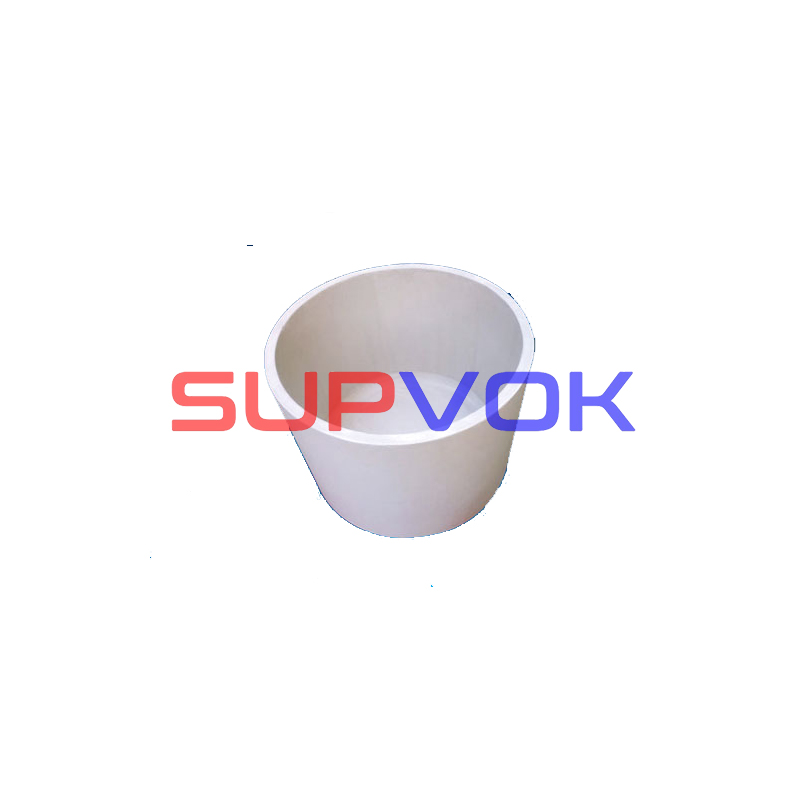

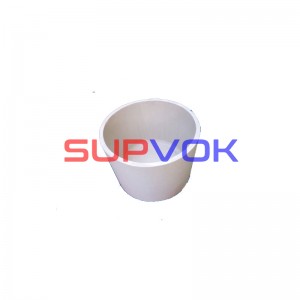

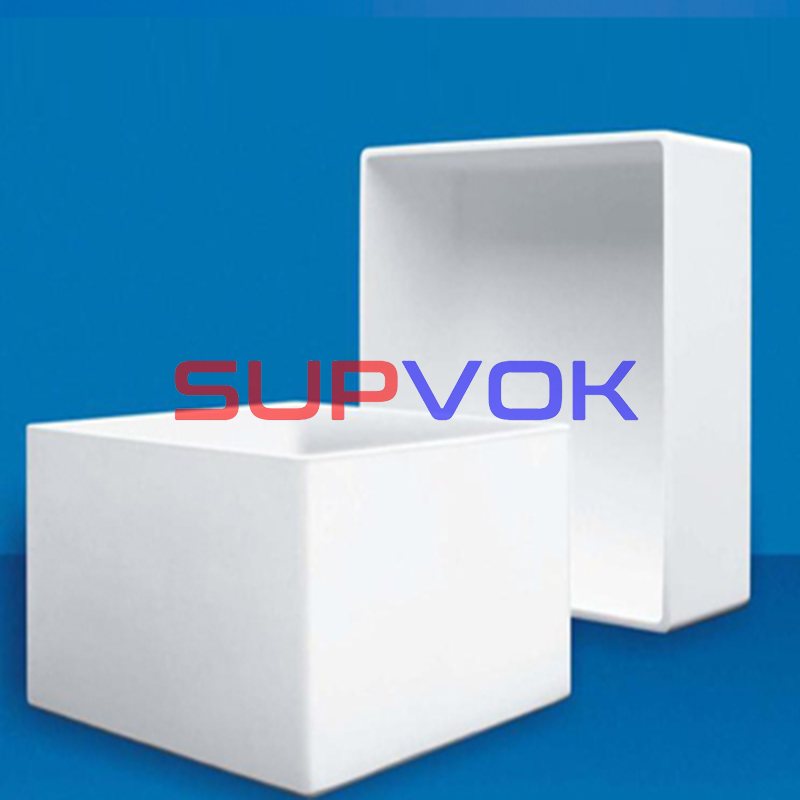

Fused silica ceramic crucibles
- Fused silica ceramic crucibles can be used for melting special glass, non-ferrous metallurgy and calcination of rare earth, high-purity alumina (gem grade), battery materials, etc.
Fused silica ceramic crucibles play the key role in polysilicon ingot furnace for solar cells. They can be used as the containers for polysilicon raw materials. Such kind of crucibles work continuously at a high temperature of 1550 ℃ to melt it. Its use conditions are extremely harsh, which leads extremely strict requirements on the purity, strength, microstructure, high-temperature performance, thermal shock stability and dimensional accuracy of the crucible. KSINO adopts the gelation technique to ensure high product yield rate and stable product quality.
Advantage
-
- High purity and strength
- Limited appearance defects
- Excellent high temperature performance and thermal shock stability
- Advanced production technique
Glass industry
-

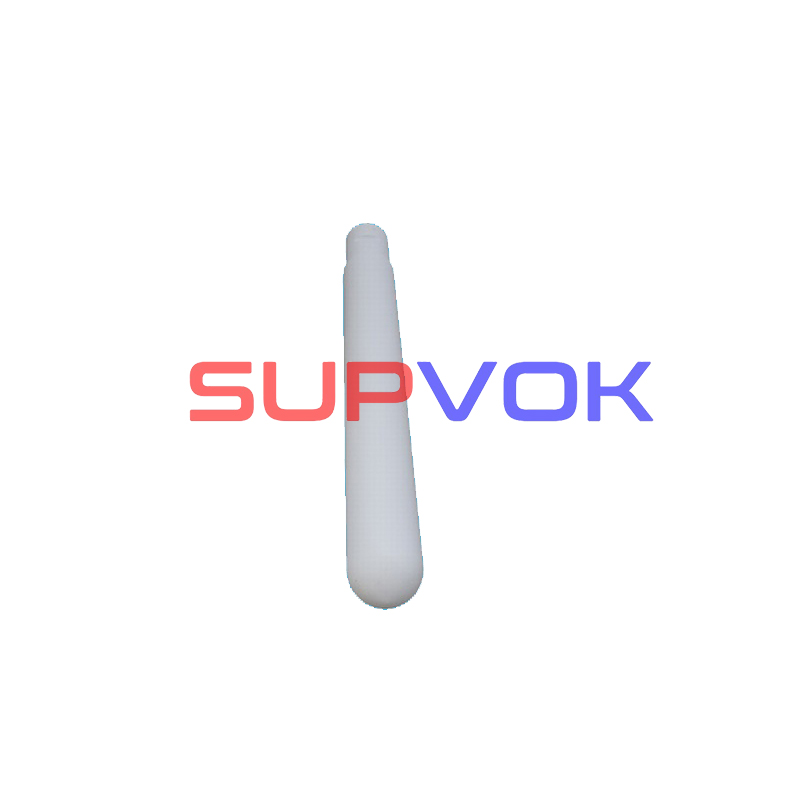

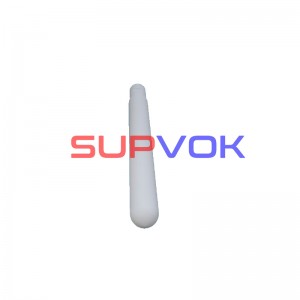

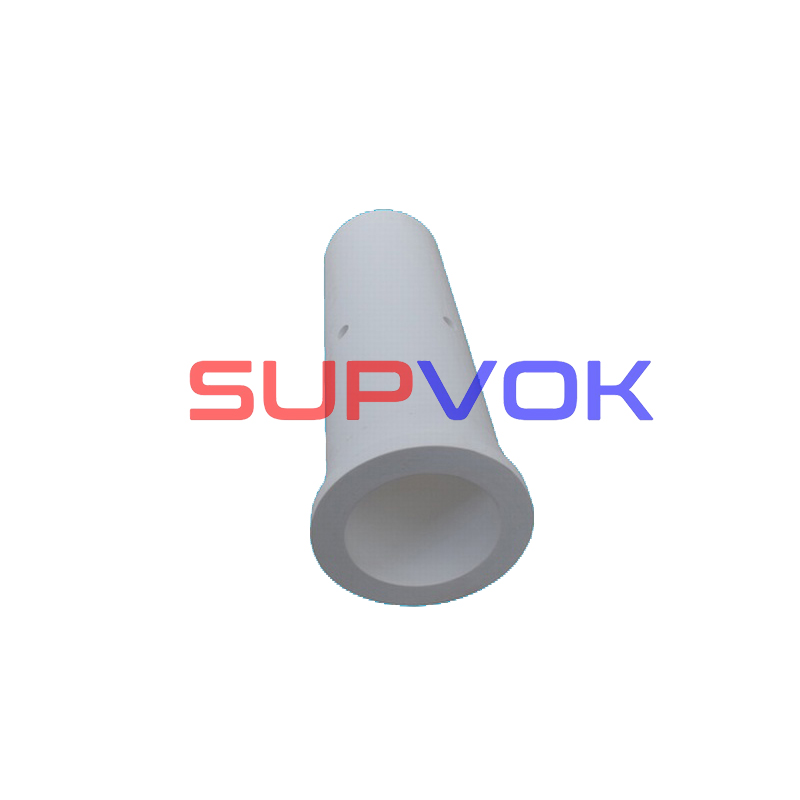

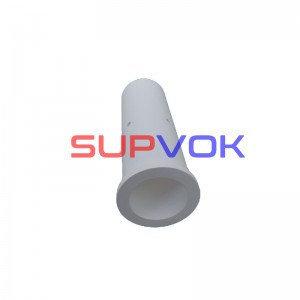

- Quartz ceramic mixing paddle, material basin, material bowl, material barrel and punch
Quartz ceramic products have excellent thermal shock stability, high purity and excellent resistance to glass melt erosion, which can ensure no pollution to glass in production.
The material is easy to form the products with large and complex shapes, which is especially suitable for special glass industry.
- Quartz ceramic mixing paddle, material basin, material bowl, material barrel and punch
