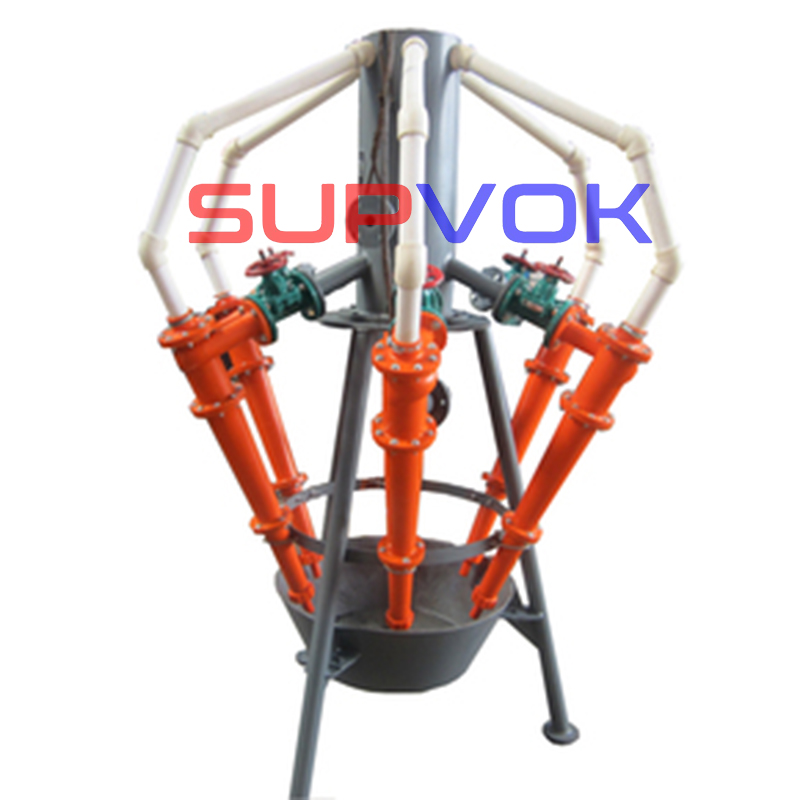

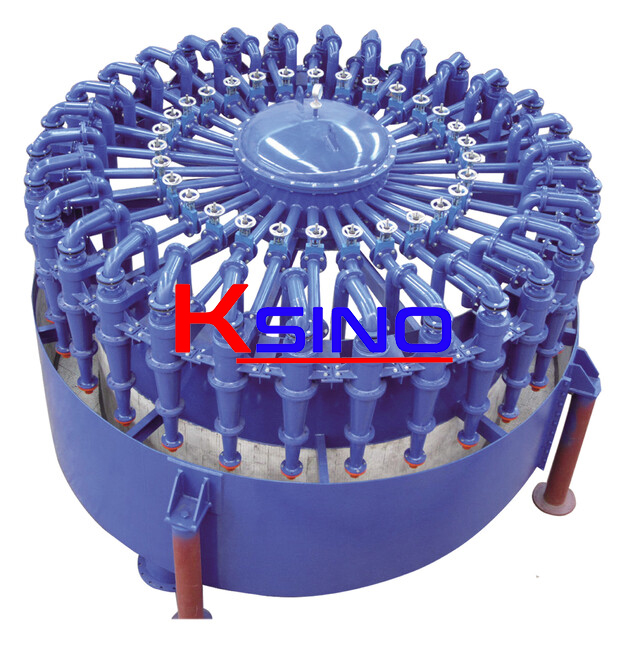

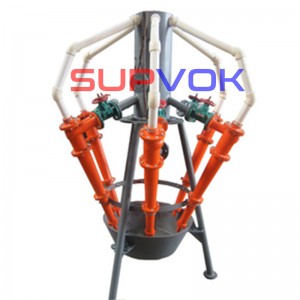

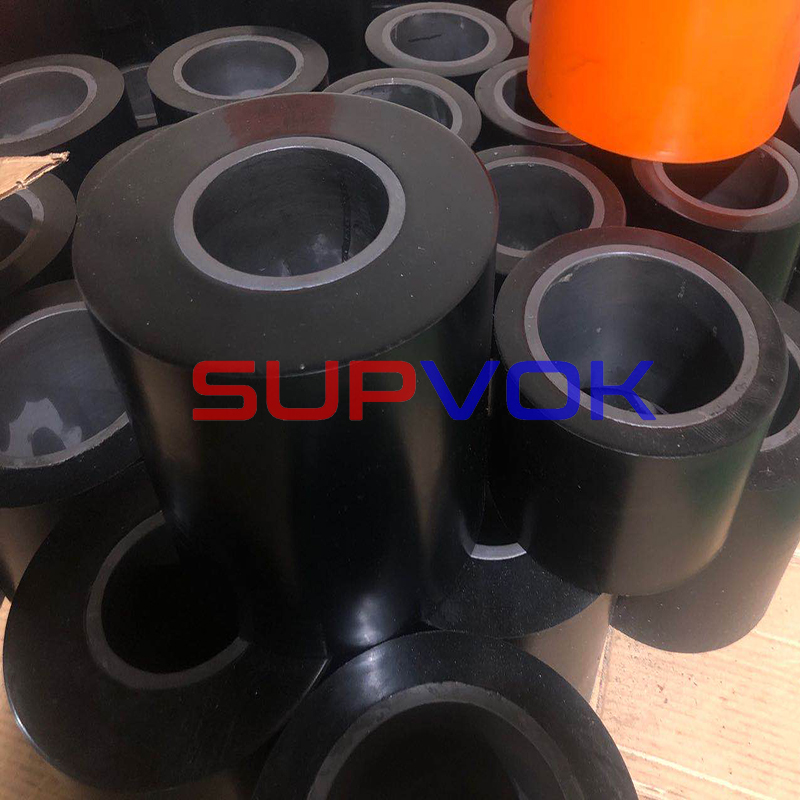

Polyurethane hydrocyclone, distributor pipe, apex, spigots

short description:

Hydrocyclone introduction

Hydrocyclone is a kind of equipment that uses water as the medium to classify and separate mineral grains in the centrifugal force field of tens to hundreds of times of gravity acceleration. According to different uses, it can be divided into grinding classification cyclone, ultra-fine classification cyclone, desliming cyclone, concentration cyclone, etc. It can be used for grinding and grading operations, raw ore desliming operations, fine grading operations, concentrate concentration operations, tailings damming operations, tailings filling operations, tailings dry drainage operations, etc. of ferrous, non-ferrous and non-metallic ores.

Send email to us

Product Detail

Product Tags

Hydrocyclone introduction

In order to meet the customer's special requirements for wear under different materials and industrial and mining conditions, the cyclone can use different lining wear-resistant materials:

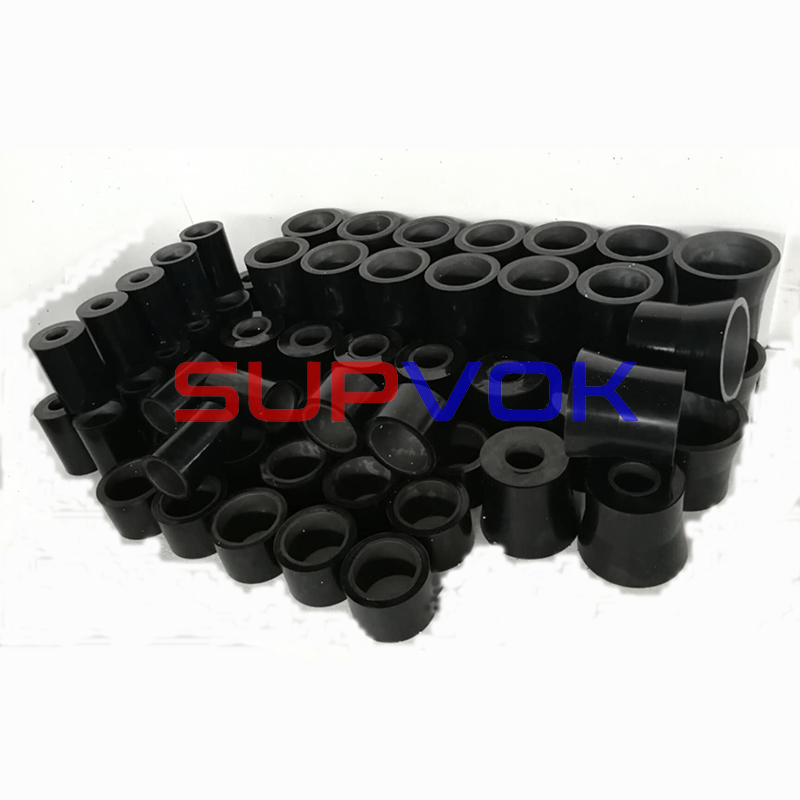

►Ceramic lining: silicon carbide, aluminum oxide, zirconia, ZTA, etc

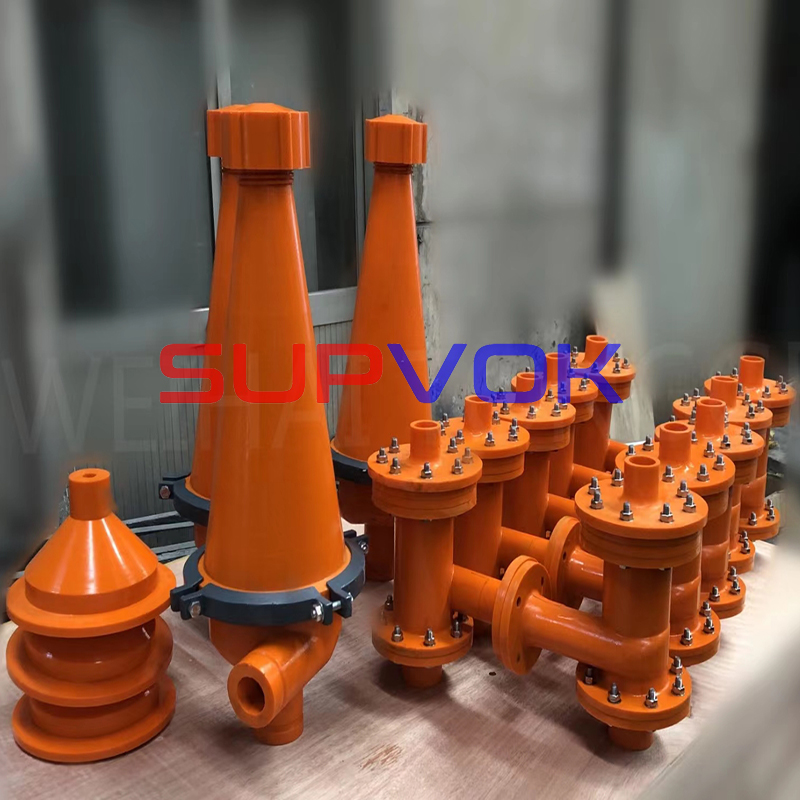

►Polyurethane lining
►Rubber lining

Hydrocyclone Technical Parameter

Model	Diameter (mm)	Angle of Cone (° )	Diameter of Overflow Outlet (mm)	Diameter of Spigot (mm)	Max Feeding Size (mm)	Inlet Pressure (MPa)	Capacity (m³/h)	Separation Particle Size (um)	Overall Dimension			Unit 〜Weight (Kg)
Model	Diameter (mm)	Angle of Cone (° )	Diameter of Overflow Outlet (mm)	Diameter of Spigot (mm)	Max Feeding Size (mm)	Inlet Pressure (MPa)	Capacity (m³/h)	Separation Particle Size (um)	Length (mm)	Width (mm)	Hight (mm)	Unit 〜Weight (Kg)
FX840	840	20	280〜380	80〜220	18	0.04〜0.2	500〜900	74〜350	1700	1500	3700	1621
FX750	750	45	180〜290	85〜175	16	0.04〜0.2	400〜500	74〜300	1210	910	2680	1400
FX710	710	45	175〜270	80〜165	16	0.04 〜0.2	350〜450	74〜250	1255	1185	1040	1250
FX660	660	20	165〜250	80〜155	16	0.03〜0.2	250〜350	74〜220	1140	1000	2920	800
FX660		45	165〜250	80〜155	16	0.03〜0.2	250〜350	74〜220	1140	1000	2000	995
FX610	610	20	155〜230	75〜140	13	0.03〜0.2	200〜300	74〜220	875	950	2560	550
FX610		45	155〜230	75〜140	13	0.03〜0.2	200〜300	74〜220	875	950	1810	600
FX500	500	20	125~185	55〜115	10	0.03〜0.3	140〜220	74〜200	850	700	2050	380
		15						74〜150	850	700	2380	540
		45						74〜150	850	825	1630	430
FX350	350	20	80~120	30〜70	6	0.04〜0.3	60〜100	50〜150	775	620	1765	208
FX350	350	15	80~120	30〜70	6	0.04〜0.3	60〜100	50〜120	775	620	1970	210
FX300	300	20	65~115	20〜50	5	0.04〜0.3	45 〜85	50〜150	498	485	1415	105
FX300	300	15	65~115	20〜50	5	0.04〜0.3	45 〜85	40 〜100	498	485	1642	169
FX250	250	2。	60~100	16〜45	3	0.06〜0.35	40 〜60	40〜100	410	380	1215	75
		15						40〜100	410	380	1405	73
		10						30〜100	410	380	1788	85
FX200	200	20	40〜65	16〜32	2	0.06〜0.35	25 〜40	40〜100	365	330	1030	45
		15						30〜100	410	330	1083	54
		10						30〜100	400	365	1490	60
FX150	150	20	30〜45	8〜22	1.5	0.06〜0.35	11 〜20	30 〜74	310	265	820	29
		15						30〜74	310	265	878	30
		10						30 〜74	310	265	1160	35
FX125	125	17	25〜40	8〜18	1	0.06〜0.35	8~15	20〜100	260	218	620	10.2
FX125	125	8	25〜40	8〜18	1	0.06〜0.35	8~15	20 〜74	260	218	870	33
FX100	100	20	20〜40	8~18	1	0.06〜0.35	5~15	20 〜100	260	210	525	8,6
		15						20〜100	268	215	720	13
		8						20 〜100	365	150	1065	23
		5						20〜100	365	150	1505	30
FX75	75	15	15~22	6〜12	0.6	0.1 〜0.4	2〜5	20〜74	240	230	420	2.2
FX75	75	5	15~22	6〜12	0.6	0.1 〜0.4	2〜5	5~40	240	230	778	6.5
FX50	50	15	11〜16	3〜8	0.3	0.1〜0.4	1〜2	10〜74	160	137	400	1.5
FX50	50	5	11〜16	3〜8	0.3	0.1〜0.4	1〜2	10〜74	160	137	680	5.5
FX25	25	5	6〜10	3~7	0.2	0.1〜0.4	0.8〜1.2	4〜20	130	85	495	1.2
FX10	10	4	3〜4	2〜3	0.2	0.2〜0.4	0.1〜0.2	2〜10	30	30	195	2
