Silicon Carbide Ceramic Bulletproof tiles
short description:

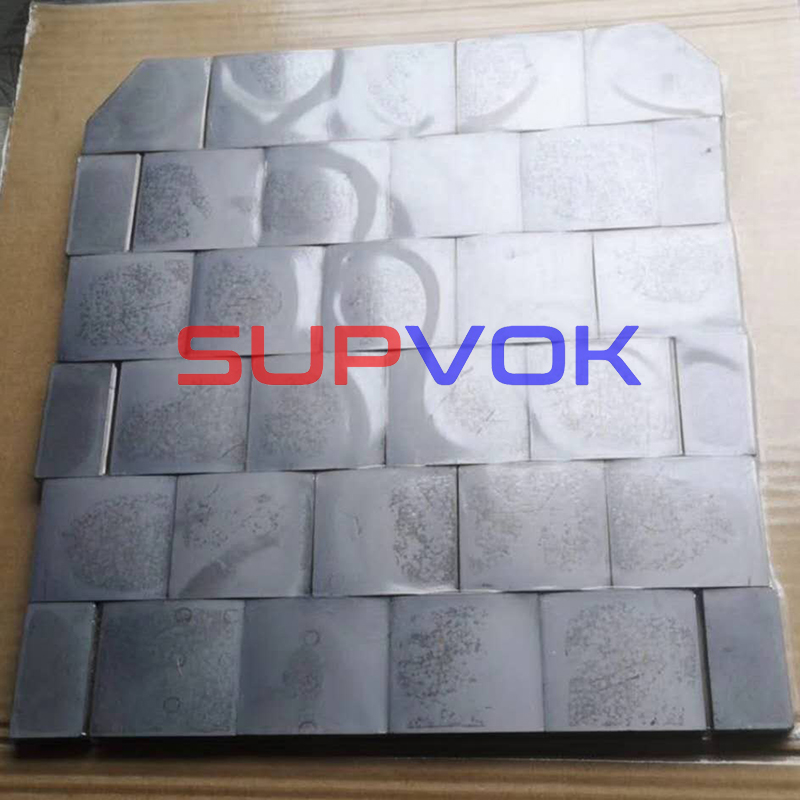

Silicon carbide ceramic tiles
The covalent bond of silicon carbide is very strong, and it still has high strength bond at high temperature. This structural feature endows silicon carbide ceramics with excellent strength, high hardness, wear resistance, corrosion resistance, high thermal conductivity, good thermal shock resistance and other properties; At the same time, silicon carbide ceramic is one of the most promising high-performance armor protection materials with moderate price and high cost performance.
Silicon carbide ceramic has broad development space in the field of armor protection, and its application in the fields of individual equipment and special vehicles tends to be diversified. As a protective armor material, considering the cost and special application conditions, small ceramic panels and composite backplates are usually bonded to form ceramic composite target plates to overcome the failure of ceramics due to tensile stress, and to ensure that only a single piece is broken without damaging the whole armor when the projectile penetrates.
Application
Bullet proof clothing and armor in key areas such as human bodies, tanks and armed helicopters.
Industry applied: national defense and military industry.
Characteristics and advantages of silicon carbide ceramic bullet proof sheet
►The product will be subject to strict dimensional and surface fluorescent penetrant testing before delivery.
►The ceramic density reaches 3.15g/cm3, and the Vickers hardness reaches 23GPa.
►Silicon carbide ceramic bulletproof sheet and polymer PE composite bulletproof sheet can meet the Class V bulletproof standard.
Specification
Customized according to customer’s design and drawings.
Product series of SSiC products
|
SSiC product category |
Common product names |
|
High precision components for semiconductor process and optical mechanical equipment |
SiC crystal boat, mechanical arm, SiC base, triangular support, SiC sucker, etc |
|
Parts for glass forming |
SiC heating plate, SiC soaking plate, SiC mold, SiC mold sleeve |
|
Bulletproof ceramic bricks and ceramic plates |
SSiC bulletproof insert plate, SSiC bulletproof piece, SSiC bulletproof block |
|
Optical reflector components |
SSiC optical reflector |
|
Fluid Control Series |
SSiC seal ring, SSiC nozzle, SSiC impeller, SSiC shaft sleeve, SSiC plunger rod |
|
High temperature resistant parts |
SSiC burning rod, square beam and roller, SSiC crucible, SSiC burner sleeve, SSiC furnace tube, SSiC protective tube |
|
Chemical corrosion resistant parts |
SSiC protective sleeve, SSiC nozzle, SSiC head, heat exchanger tube sheet, SSiC tube bundle block, SSiC heat exchange plate, SSiC heat exchange tube, SSiC heat exchange control block, SSiC heat exchange block, micro reaction module |
|
Ion resistant etching parts |
SSiC CMP carrier, SSiC ICP carrier, SSiC PVD carrier, SSiC RTA carrier, SSiC carrier |
|
Wear resistant parts |
SSiC grinding cylinder, SSiC wear-resistant pipe, SSiC wear-resistant brick, SSiC wear-resistant plate, SSiC sealing ring, SSiC sandblasting nozzle, SSiC nozzle, SSiC grinding ball, SSiC bolt and nut |
|
SSiC bearing |
SSiC bearing, ceramic bearing ball |
|
Microchannel reaction unit |
SSiC reaction plate, SSiC reaction tube, SSiC micro reaction module |
|
SSiC tube |
Heat exchanger tube, heat exchanger ceramic tube |
|
SSiC shaft sleeve |
SSiC bearing sleeve, SSiC precision ceramic bearing, SSiC shaft sleeve |
|
Other customized products |
SSiC customized parts, SSiC customized ceramic parts |
